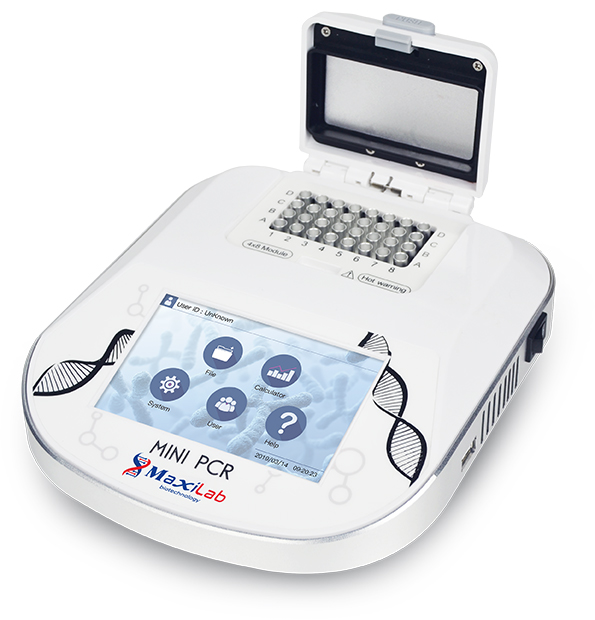

MS3-MaxiPCR32 Mini Gradient Thermal Cycler, PCR instrument

Gradient PCR instrument is a gene amplification instrument with gradient PCR function derived from ordinary PCR instrument. It is widely used in molecular biology, disease research, universitiy laboratories, research centers and other fields.

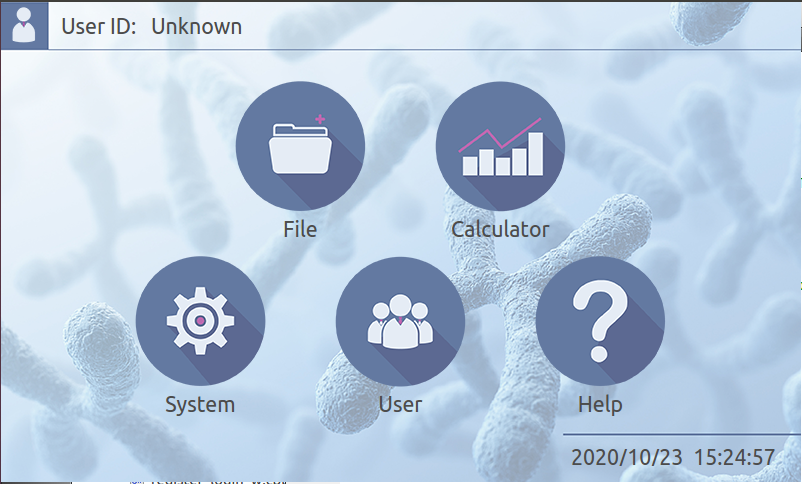

The interface operation is simple and convenient, ultra light and thin design.

The lastest generation of semiconductor technology, excellent augmentation performance, effectively eleminate the edge effect of modüle heat conduction, the module temperature uniformity is excellent. Built in multi channel refrigeration film, several sensors are evenly distributed, the program temperature control is more precise

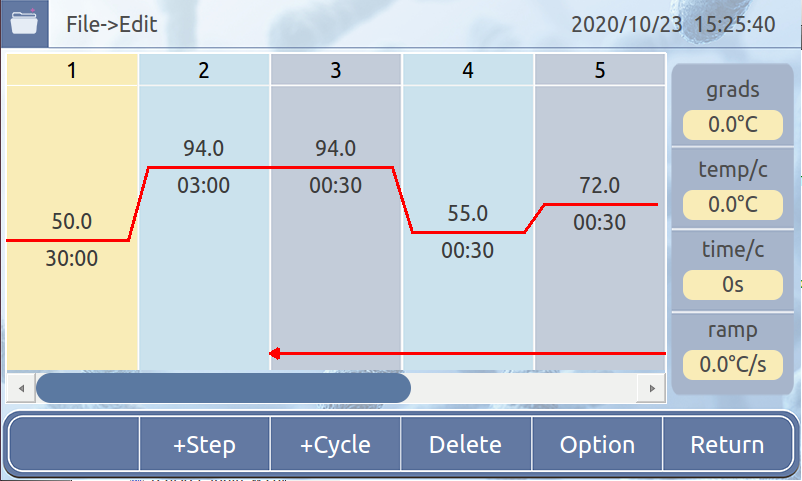

5 inch TFT high definition full color screen, can quickly edit the required files, visual display of temperature cuırve, convenient and fast setting, accuare display of temperature curve and instrument running progress status in real time.

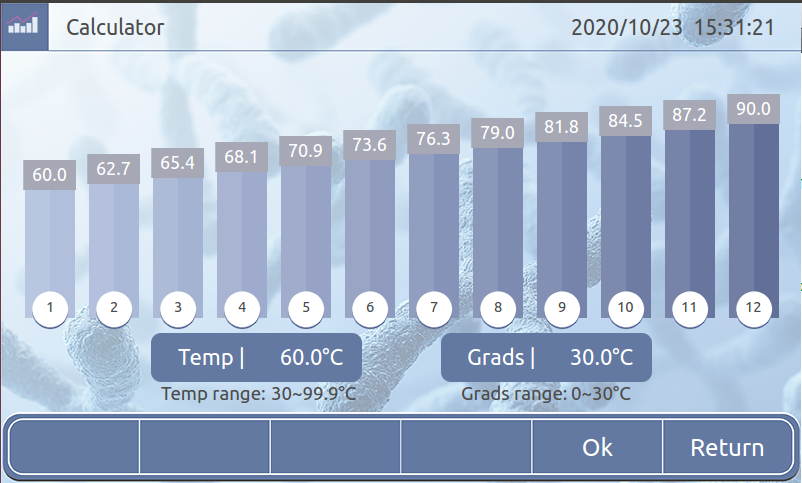

The system has a built in gradient calculator, which can easily obtain accurate annealing temperature for different experimental samples to optimize PCR reaction conditions.

The Thermal cycler insturment have genious elastic hot cover structure design. Adapts to the different height test tube, guarantees the best conditions for the test.

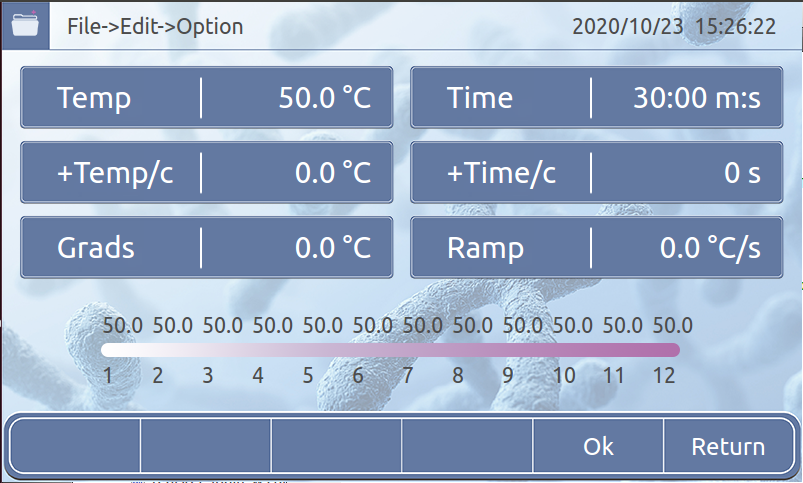

The instrument have real time display of gradient temperature and  real time temperature display.

The insrument have settable lid temperature system. The hot lid temperature and working mode can be set, hot lid can be switched on and off, and test tube temperature control mode and module temperature control mode can be choose to meet more different experimental requirements.

The 5 inch TFT high definition full touch color screen can quickly edit the required files, temperature curve visual display, the setting is conventient and fast, real time accurate display temperature curve and instrument operation process status.


Get information
by phone
Get information
by E-mail



Single step time range

1-59m59s (O is forever)

Temperature range


Sample capacity


Max. Heatng speed


Max. Cooling speed


Temp. uniformity


Temp. accuracy


Temp. display resolution


Temp. control method

Block/ Tube

Gradient temp. uniformity


Gradient temp. accuracy


Gradient temp. range


Gradient temp. Difference range


Hot cover temp. range


Max. Steps of the program


Program max. Cycle number


Time increment/ decrease

-599 / +599s

Temp. increment/ decrease

-9.9 / +9.9°C

Program pause function


16°C insulation


Display, controller

5 inch, 800x480 Pixel

Program storage quantity


Communication interface

USB 2.0

Input power

24V, 8A

Dimentions, WxDxH


Net weight

3.2 kgs
